11.2.1. Connect and detect the device¶

  1. Plug in the motherboard with the attached device on the computer and wait for the new device found windows wizard to complete.

  2. Open SmartSnippets™ Toolbox and select from the menu Board -> Detect Device

    ../../../_images/board_detect_device.png

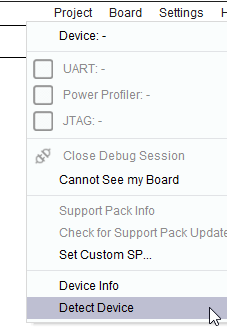

    Figure 195 Board -> Detect Device menu item

  3. Wait for the detection process to compete.

    ../../../_images/detection_process.png

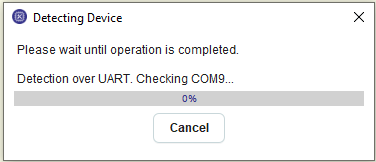

    Figure 196 Detection process

  4. Check Log window for any actions asked from the user (for example user may be asked to press the RESET button on the motherboard).

    ../../../_images/log_window_action.png

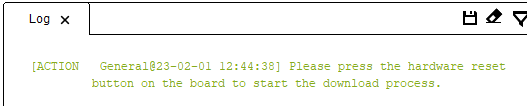

    Figure 197 Log window action

  5. When the process is finished a window like the following appears:

    ../../../_images/detection_result.png

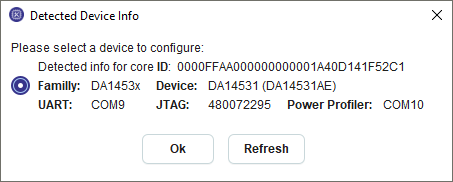

    Figure 198 Detection results

  6. Press OK. The menu items Board->UART, Board->Power Profiler and Board->JTAG are updated with ports and jtag serial numbers found on the attached device.
