5. DA14592 – USB-DEVKIT hardware

The USB-DEVKIT consists of a board featuring the DA14592 SoC, USB connector and a mikroBUS slot. More details about the DA14592 product family can be found in the DA14592 Datasheet.

5.1. The USB-DEVKIT board

Figure 1 illustrates the physical layout of the USB Development Kit.

The USB-DEVKIT provides all necessary hardware to enable:

  • Full functional verification of the DA14592.

  • Full digital connectivity with external hardware using UART, SPI and I2C.

  • USB-based debugging capabilities using the SEGGER J-Link on-board debugger for Cortex M33 processor.

  • USB-based UART communication with the host PC using a Future Technology Devices International (FTDI FT2232H) chipset which converts UART to USB.

../_images/DA14592_USB_Board.png

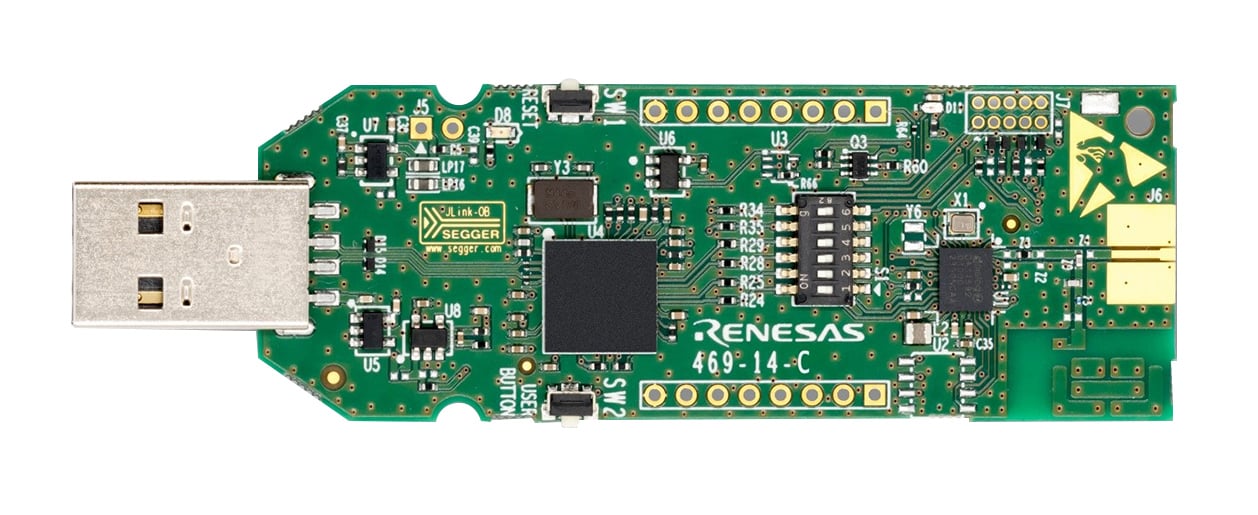

Figure 1 The DA14592 USB-DEVKIT

Notes

  • Some GPIO’s are routed to the MikroBUS connecter and can be used for monitoring GPIO and power signals.

  • The schematic diagrams, BOM, and Gerber files are illustrated in detail in the Development Kit Documentation.
