6. Appendices

6.1. Setting-up the logic analyzer to work with GTL

Saleae plugin for Renesas GTL can be found in this GitHub repo. To Set-up the logic analyzer to work with GTL you need to follow the following steps:

Add the extension from the Marketplace

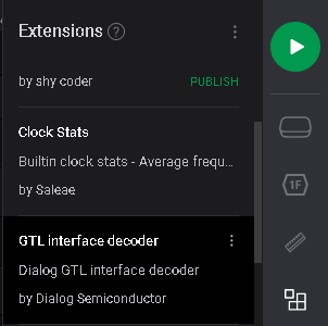

../_images/gtl_marketplace.jpg — Figure 54 GTL extension

Add GTL decode analyzers

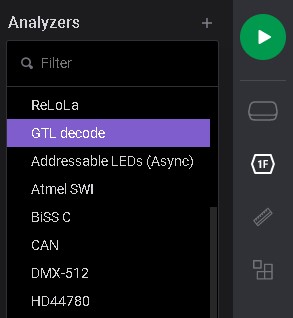

../_images/gtl_decode.jpg — Figure 55 GTL decode

Configure the analyzer for Async Serial

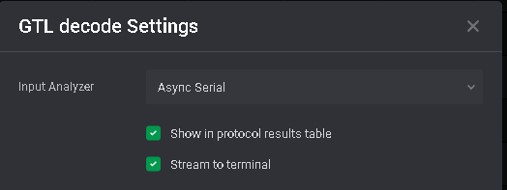

../_images/gtl_config.jpg — Figure 56 Configure GTL analyzer
