4. The DA14585/586 Hardware

The DA14585/586 Pro Development Kit DA14585/586 ProDev Kit consists of a motherboard (MB-PRO) and a DA14585 daughterboard featuring the DA14585/586 SoC of the desired package, WLCSP34 or QFN40.

4.1. The ProDev Kit Motherboard

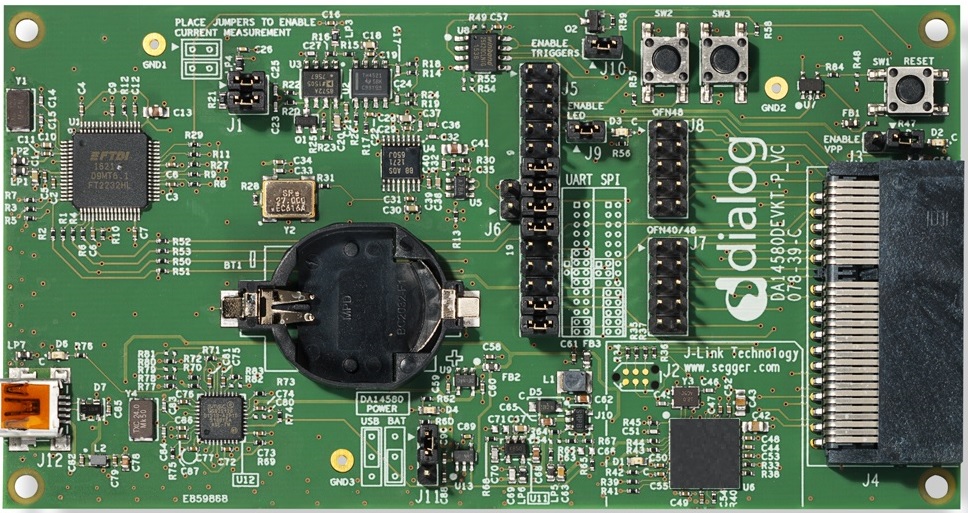

Figure 1 illustrates the physical layout of the ProDev Kit motherboard Rev C. The Figure 5 shows The DA14585/586 ProDK combined with the the DA14585 daughterboard.

The ProDev Kit Motherboard provides the necessary hardware to enable:

• full digital connectivity with external hardware using UART, SPI, GPIO, and I²C

• USB based debugging capabilities using the SEGGER J-Link on-board debugger

• USB based UART communication with the host PC using a Future Technology Devices International (FTDI) chipset which converts UART to USB signal.

Note

• DA1458x share the same ProDev Kit motherboard (DA14580 DEVKT).

Figure 1 The DA14585/586 ProDev Kit Motherboard

4.2. The DA14585/586 Pro Kit daughterboard

Figure 2 presents the DA14585/586 Daughterboard.

Figure 2 DA14585/586 Daughterboard

Table 1 DA14585 Daughter Board main elements

Reference	Description
1	Bluetooth Antenna
2	U1: BLE Processor DA14585
3	Y1: 16MHz
4	Y2: 32.768 KHz
5	PCI-e

4.3. Configuring the Pro Kit Board by Jumper Settings

The DA14585/586 supports booting from UART. The jumper settings are displayed below:

Figure 3 DA14585/586 Jumper Setting

Figure 4 shows the layout of the header jumper, J5.

Figure 4 Jumper J5 Layout

Table 2 Default jumper settings

Jumper	Default Position	Comment
J1	Placed	Enable Current Measurement
J3	Not Placed	VPP Enable
J5.11 – J5.12	Placed	TxD (P0_4)
J5.13 – J5.14	Placed	RxD (P0_5)
J5.15 – J5.16	Placed	CTS (P0_6)
J5.17 – J5.18	Placed	RTS (P0_7)
J5.25 – J5.26	Placed	T_TMS (SWDIO)
J5.27 – J5.28	Placed	T_TCK (SWCLK)
J7	Not Placed	QFN40/48
J8	Not Placed	QFN48
J9	Placed	LED Enable
J10	Placed	Enable Triggers
J11	Placed	BATT/USB

4.4. Board Layout

The layout of the boards is displayed in Figure 5.

Figure 5 DA14585/586 Board Layout

Note

The schematic diagrams, BOM, and Gerber files are illustrated in detail in the Development Kit Documentation.

4.5. Connecting the ProDev Kit to the host PC

The ProDev Kit motherboard includes FTDI chipset U1 FT2232HL which allow easy communication with the development host over USB. The FT2232HL implements the USB to UART function and ensure the connectivity of PC to the DA14585/586 SoC UART port and to current sense circuitry through SPI connection with ADC U4.

The chip is supplied with a 3.3V from U13. A 12MHz crystal Y1 is required for the chip operation.

The ProDev Kit motherboard also includes an embedded J-Link debugger U6 SAM3U2CA. The chip is supplied with a 3.3V from U13 which is enabled by PWR_ENABLE signal.

Before connecting the ProDev Kit to the host PC, make sure that the motherboard and the desired daughterboard module are properly connected.

A choice can be made between 3.3 V (via USB: J11 1-2) or VDD (a coin cell: J11 2-3). No battery is needed when running via the mini-USB cable.

The ProDK Development Kit is connected to the host PC over the connector marked as USB1, as shown in reference 6 in Figure 6 using a standard mini-USB

Figure 6 ProDK Development Kit connections

Note

• The ProDev Kit is connected to the host PC over the connector marked as USB (J12), as shown in Figure 5 using a standard mini-USB cable.

• When mounting a battery on the daughterboard, Jumper J11 should be fitted on 2-3 position.

• For proper battery functionality, a small modification should be made. See the workaround in Appendix C.
