30. IO Manager

This tool allows the user to configure GPIO pins. The available pins differ per family and IO Manager tool reads family specific xml files to retrieve the list of pins. When IO Manager is opened, an extra tab named RF Master is added to the ribbon which contains useful utilities. More info here: RF Master’s Ribbon.


Figure 160 IO Manager tool

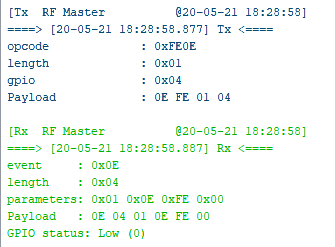

Figure 161 Sample log output for read gpio command for GPIO P0_04
